Core Advantages FPGA Device Xilinx Zynq-7000 XC7Z030-1FBG484C Package FBG484 (17mm
Material
Aerospace-grade AL6061-T651
Surface Finish
Bead-blasted + Anodized (Clear/Black)
Flammability Rating
Non-flammable (Metal)
Application
Industrial Enclosures
Consulting
+86 755 2828 2776
Business Hours (Mon.-Sat.)
9:00 - 18:00
AL6061 CNC machining delivers exceptional mechanical strength, thermal conductivity, and corrosion resistance for precision components in demanding environments. Ideal for applications requiring high reliability, including custom electronics enclosures, heat sinks, structural brackets, and robotics frames. Its superior machinability ensures tight tolerances and complex geometries.
Adhesive Type
Aluminum Alloy 6061-T6/T651
Machining Process
3/4/5-axis CNC Milling & Turning
Surface Treatment
As-machined, Bead-blasted, Anodized (Type II/III)
Yield Strength
276 MPa (40,000 psi)
Hardness (Brinell)
95 HB
Thermal Conductivity
167 W/m·K
Density
2.70 g/cm³
Design Challenges
High thermal load, structural rigidity, EMI/RFI shielding
Smallest Saleable Unit
1 piece (prototype) to 10,000+ pieces (mass production)
Performance Level
Excellent strength-to-weight ratio, good corrosion resistance
Machining Tolerance
±0.05 mm (standard), ±0.01 mm (precision)
Max Part Size (Milling)
1200 mm × 800 mm × 600 mm
Max Part Size (Turning)
Ø500 mm × 800 mm
Lead Time (Prototype)
3-7 business days
Operating Temperature
-60°C to +140°C
Machining Tolerance
±0.01 mm to ±0.0001 in
Corrosion Resistance
316L Stainless Steel or Powder Coated AL6061
Material Certification
EN 10204 Type 3.1, RoHS Compliant, REACH Complian
Surface Finish Standard
MIL-A-8625 (Anodizing), ISO 2768 (General Tolerances)
Quality System
ISO 9001:2015, IPC-A-610 for assembled components
In the demanding environment of underground and surface mining operations, the integrity of electronic enclosures is critical to equipment uptime and personnel safety. Our CNC-machined enclosures are manufactured under strict quality controls, ensuring each unit meets rigorous certification standards for explosive atmospheres, extreme ingress protection, and long-term mechanical reliability. Every enclosure undergoes dimensional inspection, seal integrity testing, and material verification to guarantee performance under continuous vibration, corrosive conditions, and temperature extremes.
IP68
Mechanical reliability
Ingress protection
Explosive atmospheres
Discover our material selection, process workflow, and quality control for precision CNC machining products.
For demanding industrial applications requiring precision, durability, and thermal management, our AL6061 CNC machining service combines aerospace-grade material with advanced manufacturing processes. The system delivers superior mechanical stability, excellent heat dissipation, and long-term reliability—ensuring optimal performance in harsh operating conditions.
We use our self-developed, customized production process, strictly controlling every step from raw material inspection to finished product testing to ensure stable and reliable product quality.
AL6061-T651 plates/bars are inspected for material certification and dimensional accuracy prior to machining.
Engineers generate optimized toolpaths using CAM software (Mastercam/HyperMill), simulating machining to verify collision-free operation.
High-speed 3/4/5-axis CNC machining centers execute roughing and finishing passes, maintaining tight tolerances.
All sharp edges and burrs are removed manually and mechanically to ensure safe handling and assembly fit.
Dimensional inspection using CMM, optical comparator, and precision gauges verifies all critical features.
Parts undergo bead-blasting to achieve uniform matte surface, followed by Type II (sulfuric) or Type III (hard coat) anodizing as specified.
Parts are cleaned ultrasonically to remove any residues, inspected for surface defects, and packaged in anti-static or custom packaging.
Each order includes inspection reports, material certifications (EN 10204 3.1), and shipping documentation.
Leveraging stringent material selection and scientifically engineered processes—from raw billet to finished machined part—our AL6061 CNC components deliver superior mechanical performance and dimensional stability for even the most demanding applications.
High-speed 5-axis machining achieves ±0.01 mm tolerances on critical features, ensuring precise alignment with mating components such as PCBs, connectors, and enclosures.
AL6061’s 167 W/m·K thermal conductivity combined with custom fin designs enables efficient passive cooling for power electronics, eliminating the need for active fans in noise-sensitive environments.
Aerospace-grade aluminum provides exceptional structural rigidity, vibration dampening, and impact resistance—protecting sensitive internal components in industrial, automotive, and outdoor applications.
We utilize advanced manufacturing processes to ensure that every CNC-machined component meets industrial-grade standards.

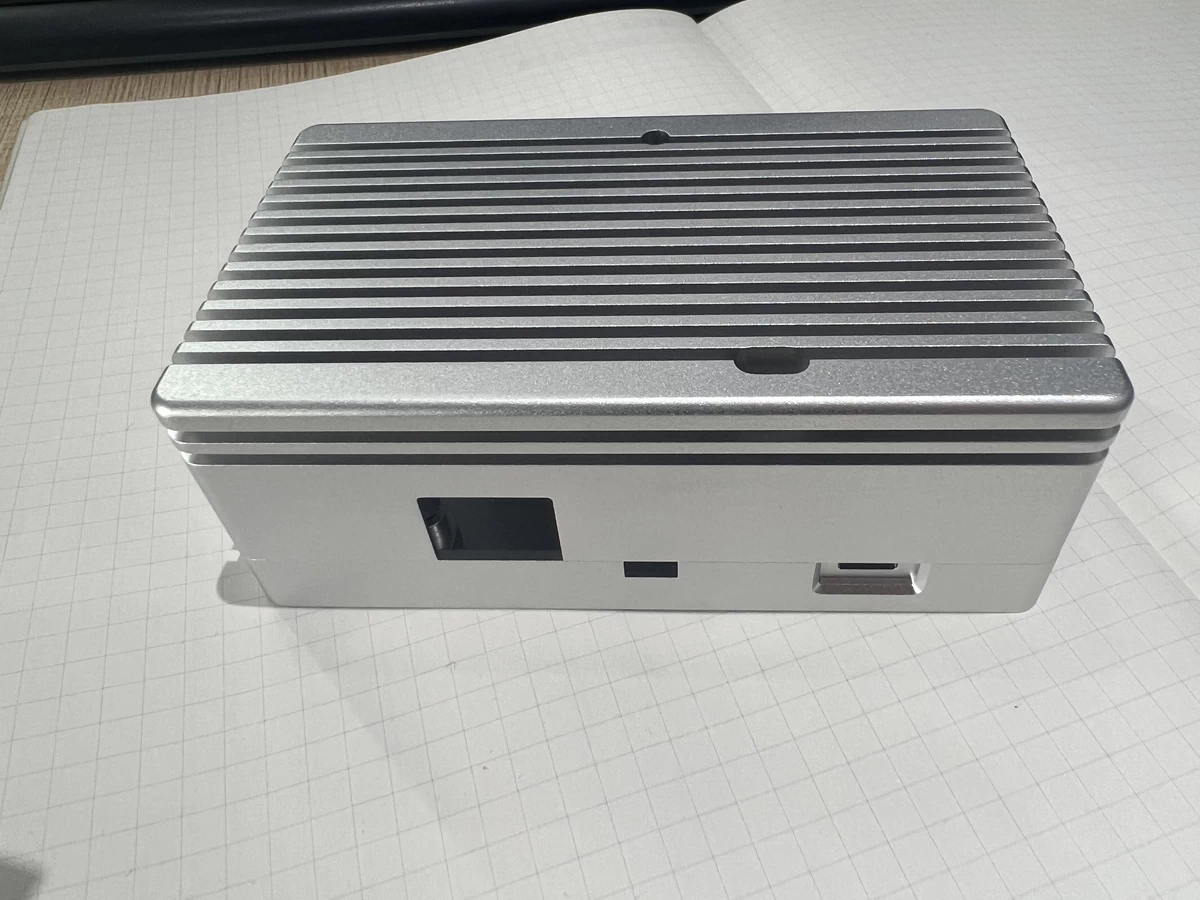

Custom enclosures for industrial PCs, Raspberry Pi systems, and communication equipment requiring EMI shielding and thermal management.
Industrial PC
Raspberry Pi systems
Communication equipmen
Precision-machined heat sinks for power electronics, LED lighting, and automotive ECUs, optimized for maximum heat dissipation.
Power electronics
LED lighting
Automotive ECUs
Surgical instrument housings, imaging equipment frames, and diagnostic device enclosures meeting stringent cleanliness and biocompatibility requirements.
Device enclosures
Imaging equipment
Instrument housings
Battery housing components, structural brackets, and thermal plates for electric vehicle powertrains and charging systems.
Battery housing
Structural brackets,
Thermal plate
Lightweight structural components, avionics housings, and mounting brackets meeting MIL-SPEC standards for durability and performance.
Avionics housings
Drone
Mounting brackets
Robotic arm links, end-effector components, and precision mounting plates for industrial automation and collaborative robots (cobots).
Arm links
End-effector components
Precision mounting plates
A North American medical device manufacturer needed precision-machined enclosures for a next-generation portable ultrasound system. Our AL6061 CNC solution delivered 0.01 mm tolerances, EMI shielding, and a clean anodized finish—enabling reliable field deployment and passing all FDA mechanical and thermal tests.
AL6061 CNC solution for
A next-generation portable ultrasound system
