Our IPC Class 3 assembly services meet the highest reliability standards for mission-critical electronics. We implement rigorous process controls—from solder paste inspection to final functional testing—ensuring zero-defect performance in aerospace, medical, and automotive safety systems.
Class Standard
IPC-A-610 Class 3
Component Types
SMT, Through-Hole, Mixed Technology
Fine-Pitch Capability
Down to 0.3 mm pitch BGAs, 0201 passives
Inspection Methods
AOI, SPI, X-Ray, ICT, Flying Probe
Solder Paste Inspection
100% SPI, volume tolerance ±15%
Placement Accuracy
±0.03 mm @ 3 sigma
Reflow Profile Control
12-zone profiling, ΔT <5°C across PCB
First Pass Yield
≥98% (NPI), ≥99.5% (production)
Solder Joint Voiding
<25% (BGA/QFN), <50% (PTH)
Component Placement
±0.05 mm
Solder Paste Volume
±15% of stencil aperture
Solder Joint Integrity
100% visual under 10x magnification, no cracks or voids exceeding class limits
Conformal Coating
Thickness 25–75 µm, bubble-free, per IPC-CC-830
Cleanliness
Ionic contamination < 1.56 µg NaCl/cm²
Halogen free
Full compliance
RoHS Status
Full compliance
REACH Status
Full compliance
In the demanding world of aerospace, medical implants, and automotive safety systems, PCB assembly failure is not an option. Our IPC Class 3 assembly processes are built on rigorous in-process controls—from automated optical inspection (AOI) and solder paste measurement to X-ray inspection of BGAs and 100% functional testing. Every assembly is documented with full traceability to meet the highest reliability requirements.
AOI
X-ray
IPC Class 3
100% functional testing
Discover our precision assembly processes, quality controls, and the technical expertise behind our IPC Class 3 PCB assembly services.
Engineered for mission-critical electronics, our IPC Class 3 assembly services combine advanced manufacturing processes with rigorous quality controls. Every design undergoes DFM/DFA review, precision solder paste printing, automated optical inspection, and X-ray verification to ensure flawless assembly. The result: unmatched reliability for the most demanding applications.
We use our self-developed, customized PCB assembly production process, strictly controlling every step from raw material inspection to finished product testing to ensure stable and reliable quality.
Senior engineers perform DFM/DFA checks using Valor and Genesis 2000, optimizing component placement and panelization.
Precision stencil printing (Type 4/5 paste) with 100% solder paste inspection (SPI), volume tolerance ±15%.
Automated pick-and-place with ±0.03 mm placement accuracy, supporting 0.3 mm pitch BGAs and 01005 passives.
12-zone reflow oven with continuous profile monitoring, nitrogen atmosphere option for fine-pitch.
100% AOI of all assemblies, detecting component placement, polarity, and solder joint defects.
100% X-ray for BGAs, QFNs, and other hidden solder joints to verify voiding and alignment.
Selective soldering for through-hole components; optional conformal coating (acrylic/silicone/urethane).
100% functional test, in-circuit test (ICT) – in case required from customer, or flying probe; first article inspection (FAI) report
Every assembly undergoes 100% AOI and X-Ray inspection to ensure solder joints meet IPC-A-610 Class 3 criteria—no cracks, no voids exceeding class limits, no wetting defects.
Every assembly undergoes 100% AOI and X-Ray inspection to ensure solder joints meet IPC-A-610 Class 3 criteria—no cracks, no voids exceeding class limits, no wetting defects.
Batch-level traceability tracks all components, materials, and processes. Optional serialization supports full lifecycle management and field returns.
Controlled reflow with 12-zone profiling, nitrogen atmosphere, and continuous temperature monitoring ensures consistent, repeatable results across all assemblies.
We deliver IPC Class 3 assemblies to industries where reliability is non-negotiable—aerospace, medical, automotive safety, and mission-critical industrial systems.
Flight control systems, avionics, satellite payloads, radar modules, and military communications equipment requiring AS9100D and full traceability.
Avionics
Satellite
Radar
Implantable devices, surgical navigation systems, patient monitors, diagnostic imaging, and lab equipment with ISO 13485 compliance.
Urgical navigation systems
Patient monitors
ISO 13485
ADAS (radar/LiDAR), engine control units (ECU), airbag controllers, battery management systems (BMS) for electric vehicles.
Radar/LiDAR
ECU
BMS
Power grid protection, railway signaling, industrial robotics, oil & gas control systems, and nuclear instrumentation.
Power
Railway
Oil & gas
Base station controllers, core routers, optical transport equipment requiring high reliability in continuous operation.
Base station
Routers
Optical transport
AI servers, GPU accelerators, and HPC systems where board failure translates to massive downtime costs.
Servers
GPU
HPC systems
A leading European medical device manufacturer required a Class 3 assembly partner for a next-generation surgical navigation system. The system combined 0.4 mm pitch BGAs, delicate flex circuits, and stringent sterilization requirements. Our engineering team performed DFM/DFA optimization, validated the reflow profile with nitrogen, and delivered 100% X-ray and functional test coverage. The result: zero field failures across 2,500+ units deployed in operating rooms worldwide.

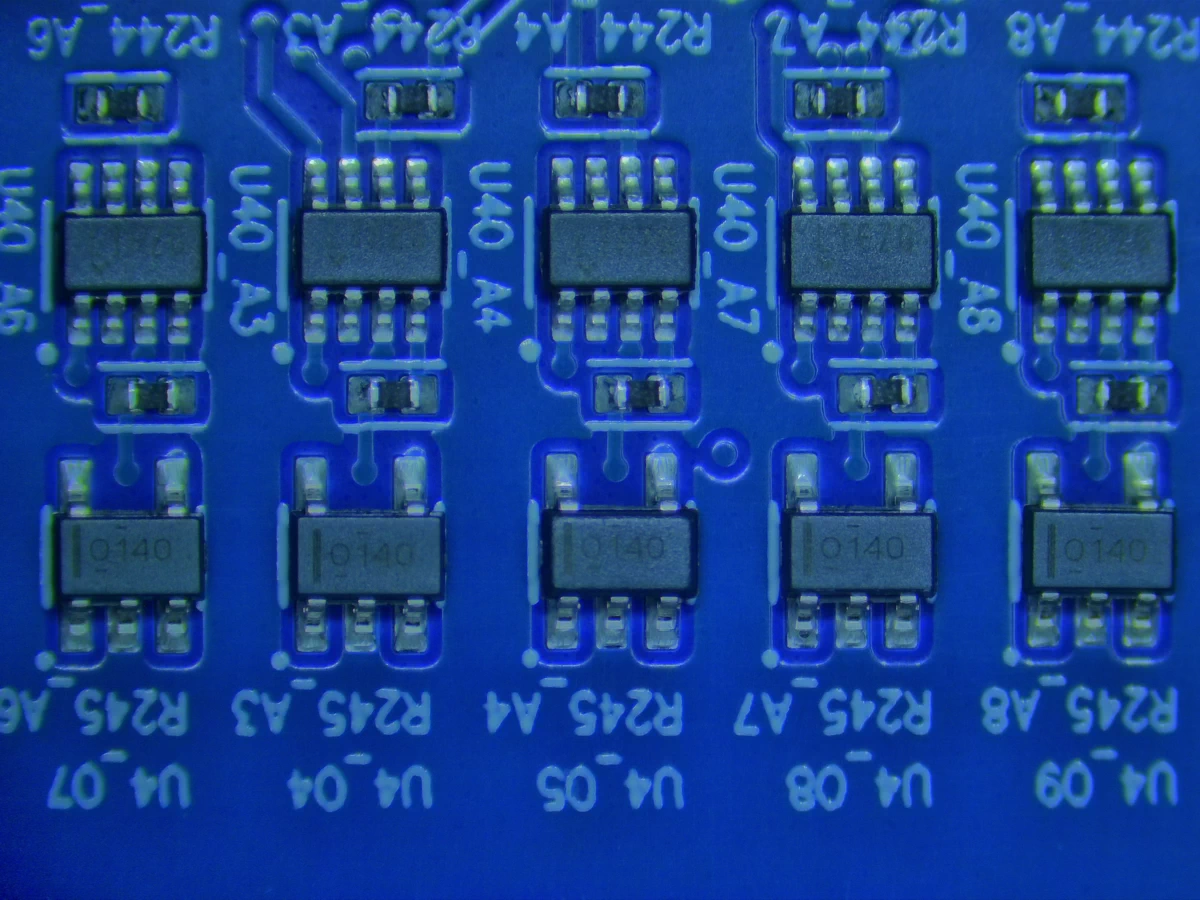

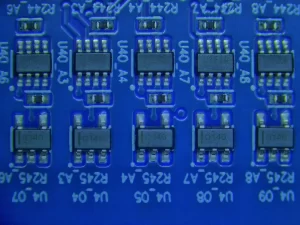

Deionized water cleaning
On a IPC class 3 assembly circuit board
