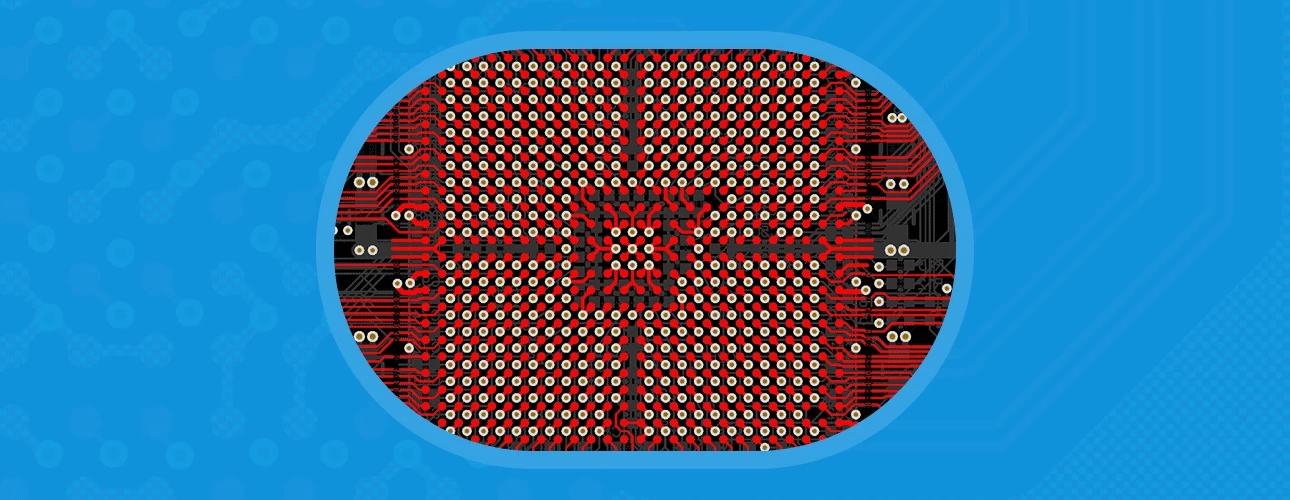

The use of high-precision electronic components is becoming increasingly common in modern electronic devices, such as fine-pitch FPGAs from Xilinx, these sophisticated components present significant challenges for circuit board design and manufacturing. These challenges include stringent constraints on trace spacing, via placement, and overall electrical performance.
Pushing the limits of circuit density with 0.4mm fine-pitch Ball Grid Array (BGA) components can feel like walking a tightrope. One misstep in your PCB design can lead to a cascade of manufacturing defects—solder bridging, non-wet opens, and crippling voiding—resulting in costly re-spins, delayed timelines, and frustrated teams.
This guide is your safety net. We’ll cut through the complexity and dive deep into the critical design and manufacturing considerations you need to transform the 0.4mm BGA challenge from a formidable obstacle into a repeatable success.
Why 0.4mm Pitch BGAs Are a Manufacturing(Critical Point)
The jump to a 0.4mm pitch (and finer) represents a fundamental shift in PCB design rules. The margin for error all but vanishes.
- Solder Ball Bridging: The proximity of solder balls increases the risk of short circuits during reflow.
- Voiding: Trapped flux or gases can create voids in the solder joints, compromising thermal and electrical performance.
- Limited Routing Escape Channels: The available space between pads for traces is extremely narrow, demanding advanced High-Density Interconnect (HDI) strategies.
- Solder Mask Registration: Any misalignment of the solder mask can render the entire design unmanufacturable.
To understand the scale of the challenge, consider this comparison:
Feature
Standard BGA (e.g., 1.0mm pitch)
0.4mm Fine-Pitch BGA
Pitch
1.0 mm
0.4 mm
Typical Ball Diameter
0.6 mm
0.25 mm
Pad-to-Pad Spacing
~0.4 mm
~0.15 mm
Recommended Pad Design
NSMD (Non-Solder Mask Defined)
SMD (Solder Mask Defined)
Via Technology
Through-hole or standard vias
Microvias & Via-in-Pad
PCB Layout Rules for 0.4mm BGA Success
Solder Mask Defined (SMD) vs. Non-Solder Mask Defined (NSMD) Pads
This is one of the most critical decisions. For 0.4mm pitch, Solder Mask Defined (SMD) pads are highly recommended.
NSMD Pads:
The copper pad is smaller than the solder mask opening. While it provides a strong mechanical bond, it offers less control over the final solder joint size, increasing bridging risk.
SMD Pads:
The solder mask overlaps the copper pad, defining its final size. This creates a physical barrier that perfectly contains the solder ball, dramatically reducing the chance of bridging.
Optimal Pad Size and Spacing
A typical starting point for a 0.4mm pitch BGA pad is a 0.25mm (10mil) diameter SMD pad. This leaves a 0.15mm (6mil) gap between pads, which is sufficient for a well-controlled solder mask dam. Always consult with your PCB manufacturer early to confirm their process capabilities.
Solder Mask Design: The Unsung Hero
The solder mask is no longer just for corrosion protection; it’s an active alignment and containment feature.
Registration Tolerance:
Your fabricator must be capable of ultra-precise solder mask alignment, typically with a tolerance of ≤ 25µm.
Solder Mask Thickness (SMT):
A thin, consistent solder mask (e.g., Liquid Photoimageable Solder Mask - LPI) is crucial to prevent it from flowing into the tiny gaps between pads and to ensure precise definition.
Via-in-Pad and Microvia Strategies for HDI Design
Escape routing from a 0.4mm BGA is impossible with traditional through-hole vias. You must adopt an HDI approach.
Via-in-Pad (VIP):
Placing a laser-drilled microvia directly in the BGA pad is the most effective way to escape signals. This saves space and improves electrical performance.
Filled and Capped Vias:
The vias must be filled with a conductive or non-conductive material and plated over (capped) to create a flat surface for the BGA ball to sit on. This prevents solder wicking into the via during reflow, which would cause a weak or open joint.
Stacked/Staggered Microvias:
For complex, high-pin-count BGAs, you will need multiple layers of microvias to fan out all the signals. Our guide on HDI PCB Design covers this in more detail.
Design for Manufacturing (DFM): Your Ultimate Insurance Policy
The most perfect design is worthless if it can’t be manufactured reliably. Proactive DFM is non-negotiable.
Comprehensive Data Package:
Share your preliminary layout with your PCB partner before you finalize it. Share your preliminary layout with your PCB partner before you finalize it.
Filled and Capped Vias:
Provide more than just Gerbers. Include an IPC-356 netlist for continuity testing and a detailed stack-up drawing.
Stencil Design Collaboration:
Work with your assembly house on the solder paste stencil design. This often involves using a step-down stencil (thinner in the BGA area) or laser-cut nano-coated stencils for optimal paste release onto the tiny pads.
Request a DFM Report:
A good manufacturer will run your files through specialized software and provide a detailed report highlighting any potential issues like acid traps, slivers, or mask misregistration.
Other Standard Guideline Points:
Routing traces between BGA pads is prohibited.
Minimum Pad size 0.127mm with 0.1mm laser hole drilled on (this could save much space for PCB layout and reduce final PCB size). And strongly recommend to use stack up: 0.8mm type or 1.2mm type.

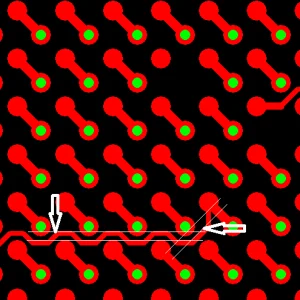

Keep the minimum spacing:0.15mm between track and holes(refer below picture).
Manufacturability Limitations of 0.4mm Fine-Pitch BGA Designs
| Item | Inner layer design without tracks between holes | Inner layer design with some tracks between holes | Outlayer design without tracks between holes | Out-layer design with some tracks between holes |
| Drill hole size (mil) | 6.0 | 4.0 | 6.0 | Design deed to be exactly evaluated case by case |
| Track width (mil) | 2.0 | 2.0 | / | |
| Spacing between hole and the track (mil) | 3.87 | 4.87 | / | |
| Annular ring size per side (mil) | / | 2.50 | 3.00 | |
| Other notes: | PCB thickness<=1.20mm; base copper in inner layers: <=0.5oz | PCB thickness<=0.80mm; base copper in inner layers: <=0.5oz | PCB thickness<=1.20mm; base copper in out layers: <=0.5oz | |
| 1. Can only make prototypes 2. Must be symmetrical stack-up design 3. Layout count <= 6L | ||||
1.20 mm Stack-up Guideline (only for 4L HDI)
| 1.2mm thickness stack-up design reference | Thickness | |||||||||
| L1 | Copper | 8.5 | um | |||||||
| PP 1080 | ||||||||||
| TU-7689 | ||||||||||
| L2 | Copper | 35 | um | |||||||
| Core | 900 | um | ||||||||
| L3 | Copper | 35 | um | |||||||
| TU-7689 | ||||||||||
| PP 1080 | ||||||||||
| L4 | Copper | 8.5 | um | |||||||
| **1 | Assumed based copper thickness as 35um in L2 & L3 | |||||||||
| **2 | If copper thickness in L2 & L3 is 17um, the core thickness = 1.0mm | |||||||||
| **3 | The prepreg PP1080 thickness can be flexibly adjusted | |||||||||
| **4 | Laser drilling process on L1-L2, L3-L4; the blind hole size 0.1mm | |||||||||
0.80 mm Stack-up Guideline (only for 4L HDI)
| 0.80mm thickness stack-up design reference | Thickness | |||||||||
| L1 | Copper | 8.5 | um | |||||||
| PP 1080 | ||||||||||
| TU-7689 | ||||||||||
| L2 | Copper | 35 | um | |||||||
| Core | 510 | um | ||||||||
| L3 | Copper | 35 | um | |||||||
| TU-7689 | ||||||||||
| PP 1080 | ||||||||||
| L4 | Copper | 8.5 | um | |||||||
| **1 | Assumed based copper thickness as 35um in L2 & L3 | |||||||||
| **2 | The prepreg PP1080 thickness can be flexibly adjusted | |||||||||
| **3 | Laser drilling process on L1-L2, L3-L4; the blind hole size 0.1mm | |||||||||
PCB Surface Finish Selection for 0.4mm Fine-Pitch BGAs
| Surface finishing | Options | Rmark |
| HAL(hot air solder leveling) | No-X(the surface is not so smooth so it will take trouble in soldering) | X |
| HAL Lead free | No-X(the surface is not so smooth so it will take trouble in soldering) | X |
| Immersion gold | Good-√ | √ |
Design for Manufacturing (DFM): Your Ultimate Insurance Policy
Mastering 0.4mm fine-pitch BGA design is about embracing a holistic approach that intertwines layout, materials, and manufacturing partnership. By implementing these strategies—prioritizing SMD pads, leveraging via-in-pad, specifying precise solder mask, and collaborating closely with your fabricator—you can mitigate the risks and unlock the full potential of high-density design.
Don’t let the complexity of 0.4mm BGAs derail your next project.
